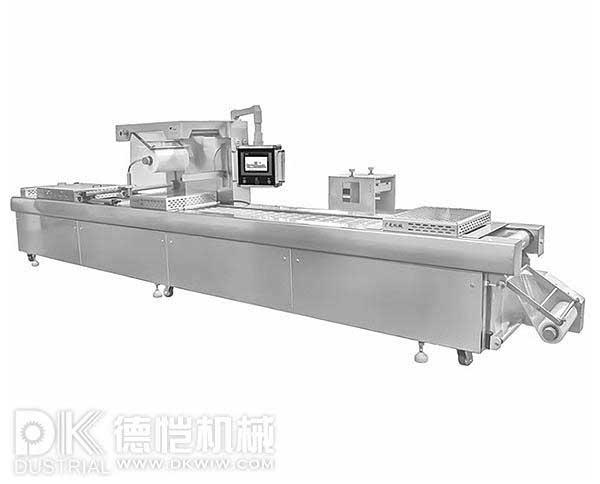

The composition of the pillow-type packaging machine equipment

1 Composition of the packaging machine

The pillow-type packaging machine is usually more complex than ordinary general machines and uses various motion mechanisms. Each motion requires coordination, indexing, positioning and quantitative requirements. If it is a multi-functional linkage machine and can adapt to various packaging specifications, then it is a multi-functional machine, and its structure will be more complex. However, no matter how complex and complicated the packaging machine is, its structure consists of three parts: the power part, the transmission part and the execution part.

# # I. The quantitative feeding device for packaging items. This is a device used to classify, measure, arrange and transport packaging items to the predetermined workstation.

2 Arrangement and feeding equipment for packaging materials.

This is a device that quantitatively cuts or arranges packaging materials or packaging containers and transports them to the predetermined workstation. Some bag packaging machines will also complete the bag-making process during the supply process.

3 Main conveying device. This is a device that conveys packaging items and packaging materials from one packaging station to another in sequence.

Single-station packaging machines can retain this equipment.

4 Packaging execution equipment. This refers to the equipment that directly performs packaging operations, such as packaging, filling, sealing, labeling and tying.

5 Finished product output equipment.

This is a device that removes the finished products from the packaging execution equipment and sends them out from the packaging machine.

6 Power machine and transmission equipment.

The power machine is usually an electric motor. The transmission device includes a reducer, power and motion transmission and conversion mechanisms, and can be used in various forms, such as mechanical, hydraulic, pneumatic, electromagnetic, light sensing, etc. Therefore, each part of the packaging machine can.

7 Control equipment.

Includes packaging speed, pressure, temperature, action time indicators and control devices, packaging quantitative and quality monitoring devices, and various automatic protection devices of the machine.

8 Body.

Used to support and fix related parts and components to maintain their designated working position and protect the machine.

Its structure should be easy to operate and maintain, and the appearance should be as beautiful as possible.

The following figure is the block diagram of the packaging machine, which shows the relationship among these eight elements of the packaging machine. The double-line arrows in the figure indicate the main conveying system of packaging materials and packaging materials. Control relationship.

To facilitate the analysis and understanding of the working principle and structural characteristics of the packaging machine, we will decompose the three main components of the packaging machine into eight aspects according to the working functions of the packaging machine and call them the eight elements of the packaging machine.

1 Classification of the packaging machine

The packaging machine can be roughly divided into two types: ① machines for processing packaging materials and packaging containers; ② machines that complete the packaging process.

Here the discussion is limited to the latter, that is, the packaging machine that completes the packaging process. According to the general terms of packaging in the national standard GB4122-83, the definition of the packaging machine is: a machine that completes all or part of the packaging process. The packaging process includes filling, packaging, sealing and other main packaging processes as well as related pre-treatment and post-treatment, such as cleaning, stacking and disassembly.

In addition, it also includes auxiliary equipment, such as stamping and measurement.

Based on this, the packaging machine can be divided into eight categories; ① packaging machine, ② filling machine, ③ sealing machine, ④ labeling machine, ⑥ multi-functional packaging machine, ⑦ washing, drying, disinfection machine, ⑧ container machine, ⑨ packaging auxiliary mechanical equipment.

Wrapper

The machine that packages products using flexible packaging materials is called a packaging machine.

According to different packaging methods, it can be divided into: ① folding packaging machine, ② twisting packaging machine, ③ seam packaging machine, ④ covering packaging machine, ⑥ winding packaging machine, ⑥ stretching packaging machine, ⑦ suitable packaging machine, ⑧ shrink packaging machine. The schematic diagram of the packaging methods of the packaging machine is shown in Figure 1-7.

2 Filling machine

The machine that fills the packaging material into the packaging container is called a filling scraper.

According to the filling quantity, it can be divided into: ① volumetric filling machine, ② weighing filling machine, ③ counting filling machine, ④ filling machine, ⑤ gravity filling machine, ⑥ push-in filling machine, ⑦ picking and placing filling machine waiting.

3 Sealing machine

The machine that closes the opening of the packaging container is called a sealing machine.

According to different sealing methods, it can be divided into: ① heat sealing machine, ② fusion welding sealing machine, ③ embossing sealing machine, ④ folding and weaving sealing machine, ⑤ lap sealing machine, ⑥ rolling sealing machine, ⑦ sealing sealing machine, ⑧ sealing sealing machine, ⑨ screw-in sealing machine, ⑩ tying sealing machine, tape sealing machine, sewing sealing machine, etc.

4 Labeling machine

The machine that pastes or inserts labels on the product is called a labeling machine. According to the fixation method of the label, it can be divided into: ① labeling machine, ② shrink labeling machine, ③ labeling machine, ④ nail machine, ⑤ labeling machine, etc.

5 Multi-functional packaging machine

The machine that can complete more than two packaging processes is called a multi-functional packaging machine. They are usually named according to the packaging processes they can complete.

Mainly: ① filling and sealing machine.

② forming packaging machine forming packaging materials, ③ shaping sealing machine shaping pre-formed packaging containers, ④ vacuum packaging machine filling vacuum sealing, ⑤ inflation packaging machine filling inflation sealing, ⑧ packaging Standard machine, etc.

6 Cleaning, disinfection, drying machine

The machine that cleans, disinfects and dries the packaging container before or after packaging is called a cleaning machine, disinfection machine and drying machine. For example, the bottle washing machine, external washing machine and spray sterilization machine, Yan steam sterilizer, ultraviolet sterilizer, hot air dryer, infrared dryer, etc. commonly used in light industry all belong to this type of machinery. If the machine has multiple functions, it can be combined with the functions, such as cleaning and drying machine, killing millions of machines, cleaning - sterilizing drying machine, etc.

7 Container machine

The machine that packs and bundles individual units of packages is called a container machine. It can be named according to its container method, such as: ① binding machine, ② binding machine, ⑧ compression packaging machine, ④ packaging machine, etc.

8 Packaging auxiliary machinery equipment

Among the above 7 items, any machinery equipment that must be used to complete the packaging process but is not included can be called auxiliary packaging machinery equipment, such as conveyors, stacking tables, gauges, opening machines, coatings, adhesives, printers, inspection machines, etc.

In addition to the above classification, the packaging machine is mainly classified according to the packaging function of the machine, sometimes according to the degree of automation or application scope. For example, a machine that only packages products of specific shapes, specifications and sizes is called a special packaging machine; a machine that automatically completes feeding, packaging and output of finished products is called an automatic packaging machine. A packaging machine that can only package products of specific shapes, specifications and sizes is called a special packaging machine; a machine that can package products of two or more shapes, specifications and sizes is called a multi-functional packaging machine. A dedicated packaging machine; it can package any shapes within a certain range. Products with specifications and sizes are called general packaging machines.
