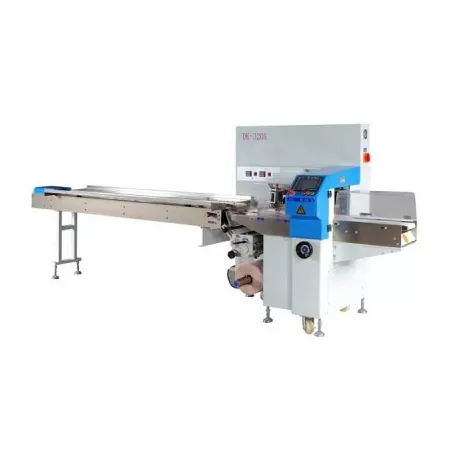

Critical Components and Their Functions in a Pillow Packaging Machine

To truly appreciate the engineering behind a pillow packaging machine, one must understand its key components. Each part plays a vital role in the seamless transformation of a roll of film into a finished, product-filled pouch. The reliability and quality of the final package are directly dependent on the precise function and interaction of these subsystems.

1. The Film Unwinding and Tension Control System

This is the starting point of the packaging process. The system comprises an unwind shaft that holds the roll of film and a critical tension control mechanism. Consistent tension is non-negotiable. If the tension is too high, the film can stretch or tear; if it's too low, the film can wrinkle or wander, leading to misalignment and faulty seals. Modern systems use servo-driven unwind stands with dancer arms or load cells to provide closed-loop feedback, maintaining perfect, consistent tension regardless of the roll's diameter.

2. The Forming Collar

This is a precisely engineered, often custom-made, metal shape around which the flat film is guided. The pillow packaging machine's geometry is crucial as it dictates how the film is folded into a consistent, cylindrical tube around the filling tube. A poorly designed forming collar can cause film wrinkling, excessive drag, and inconsistent tube formation, all of which jeopardize seal integrity and package appearance. It must be smooth, polished, and perfectly symmetrical.

3. The Filling Tube

Situated inside the newly formed film tube, the filling tube acts as a conduit for the product. Its diameter and surface finish are tailored to the specific product being packaged. For powdery or granular products, the tube might be designed to minimize dust generation. For fragile items like cookies, it may be lined with a low-friction material to prevent breakage. The bottom of the filling tube is often flared to help guide the product smoothly into the film tube.

4. The Longitudinal Sealer

This component is responsible for creating the continuous back seal of the package. There are several types:

Heated Belt Sealers: These are the most common. Two endless, heat-resistant belts press the overlapped film edges together while applying heat, creating a consistent seal as the film moves downward.

Rotary Sealers: These use heated wheels that roll against the film overlap. They are often used for specific materials or applications where a continuous contact seal is beneficial.

The temperature of the longitudinal sealer must be precisely controlled to melt the film's sealing layer without burning through it.

5. The Cross-Sealing Jaws

Arguably the most critical component, the cross-sealing jaws perform the final act of package creation. These are paired, heated bars that close on the film tube. Their functions are multi-fold:

Sealing: They apply heat and pressure to fuse the two layers of film together, creating the top and bottom seals of consecutive packages.

Cutting/Perforating: They incorporate a mechanism to separate the finished package from the film web. This can be a knife that cuts completely through the seal, or a perforating wire that creates an easy-tear perforation.

Patterning: For certain applications, the jaws may have embossed patterns to create a branded, crimp seal.

Jaw temperature, pressure, and dwell time (the duration they remain closed) are all critical parameters that must be optimized for the specific film material to ensure a strong, hermetic seal.

6. The Film Pull-Down Belts

Located on either side of the film tube, these are synchronized belts that grip the film and pull it downward through the machine at a consistent rate. Their synchronization with the cross-sealing jaws and the product feed is essential for proper package length and placement of the product within the bag.

7. The Control System: PLC and HMI

The Programmable Logic Controller (PLC) is this pillow packaging machine's brain. It receives inputs from all sensors (temperature, position, photo-eyes) and sends commands to all actuators (servo motors, heaters, solenoids). It ensures perfect timing and coordination between every moving part. The Human-Machine Interface (HMI) is the touchscreen through which the operator communicates with the PLC. It allows for setting parameters, monitoring operation, storing recipes, and diagnosing faults.

8. Auxiliary Systems

Depending on the application, several auxiliary systems may be integrated:

Product Feeders: Volumetric cups, auger fillers for powders, or weigh scales for precise weight filling.

Date Coders/Printers: Often integrated into the cross-sealing jaws or placed immediately after the discharge conveyor to imprint batch codes, expiry dates, and lot numbers.

Gas Flushing System: For Modified Atmosphere Packaging (MAP), comprising a gas mixer, flow meters, and a flushing nozzle directed into the film tube before the final seal.
